AirTouch N30i
A softer, gentler sleep
- ComfiSoft™nasal cushion is designed to be extra comfortable with a secure seal.
- SpringFit™ frame is wrapped in fabric and designed to adjust to your face and head shape for an easy fit.
- Soft headgear with adjustable side bands contours comfortably to the back of your head to give you a secure fit.
In your favorite sleep position
- Tube-up design keeps tubing out of your way so you can sleep in any position.
- Quick-release elbow makes it easy to disconnect the mask from tubing if you need to get up at night.
As close as you’d like
- QuietAir™ diffused venting creates a more peaceful bedroom.
Put the frame and head gear over the head so the elbow sits on top and the headgear is positioned behind the head
Place the cushion under the nose. Tighten or loosen the headgear until the cushion fits comfortably
Squeeze the side buttons on the elbow and detach it from the frame
Connect the air tubing from the device to the elbow
Reattach the elbow tothe frame. The mask is now ready to use.
Wear longer hair over the top of the headgear for the best fit.

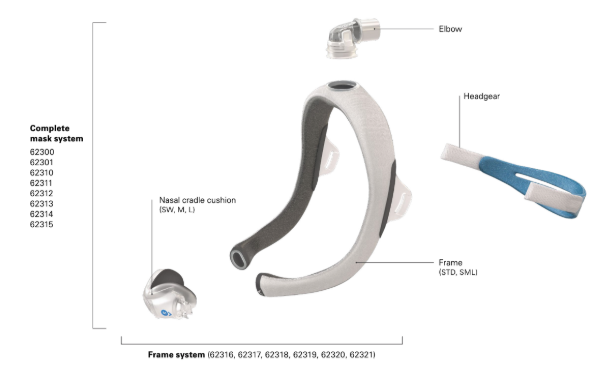

| Complete mask system | |
|---|---|
| (Includes mask frame, headgear, and 3 cushion sizes) | |
| AirTouch N30i STPK - STD | 62300 |
| (Includes frame system, cushions and headgear) | |
| AirTouch N30i STPK - SML | 62301 |
| AirTouch N30i SLM STPK - STD | 62306 |
| AirTouch N30i SLM STPK - SML | 62307 |
| (Includes mask frame, headgear, and cushion) | |
| AirTouch N30i System – SW/STD | 62310 |
| AirTouch N30i System – M/STD | 62311 |
| AirTouch N30i System – L/STD | 62312 |
| AirTouch N30i System – SW/SML | 62313 |
| AirTouch N30i System – M/SML | 62314 |
| AirTouch N30i System – L/SML | 62315 |
| Nasal cradle cushion | |
| AirTouch N30i Cushion - SW | 62330 |
| AirTouch N30i Cushion - M | 62331 |
| AirTouch N30i Cushion - L | 62332 |
| Frame system | |
| (Includes mask frame and cushion) | |
| AirTouch N30i Frame System – SW/STD | 62316 |
| AirTouch N30i Frame System – M/STD | 62317 |
| AirTouch N30i Frame System – L/STD | 62318 |
| AirTouch N30i Frame System – SW/SML | 62319 |
| AirTouch N30i Frame System – M/SML | 62320 |
| AirTouch N30i Frame System – L/SML | 62321 |
| Headgear | |
| N30i/P30i Headgear | 63814 |
Disassembly
If your mask is connected to a device, disconnect the device air tubing from the mask elbow.
Pull the cushion from the frame
Gently peel the cushion away and slide the vent out.
Undo the fastening tabs on the headgear straps and pull from the frame.
Squeeze the side buttons on the elbow and detach from the frame.
Note:
- The QuiteAir or multi-hole vent can be removed to allow inspection of the vent holes
- After detaching the headgear, close the fastening tabs to prevent it from damaging the fabric sleeves when handling
Assembly
Connect the elbow into the top of the frame until it clicks.
insert each end of the headgear strap into the frame and fold the fastening tab backwards. Ensure that the Resmed logo is facing outwards and is upright.
Align the tab(a) on the cushion with the notch 9b) on the vent, and then gently pull the cushion over the vent.
Insert the ends of the frame into the cushion, ensure that the arrows on the cushion and frame are aligned.
Note:
- If the elbow ring detaches, re-insert into the top of the frame.
