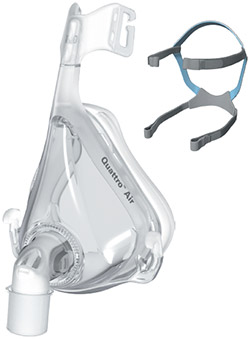

Quattro Air

Even more comfort

  • The Quattro™ Air is 45% lighter than the Mirage Quattro™.
  • The flex-wing forehead support feels light and comfortable.
  • The enhanced dual-wall cushion delivers a high-performance seal.
  • The SoftEdgeâ„¢ headgear design with premium rolled-edge fabric reduces facial marks.

Quick and easy setups

  • Only four parts makes it fast to demonstrate and easy to train patients.
  • The easy one-piece elbow with squeeze tabs makes attaching and detaching quicker and easier.
  • Headgear loops simplify attachment.

Improved patient usability

  • Greatly reduced complexity with improved comfort and stability lowers patient callbacks.
  • The light, streamlined and comfortable design helps patients accept therapy.

Fitting tips

  • When fitting the mask, ensure that the base of the cushion sits at the crease of the patient's chin and then swing the mask upwards towards the patient's nose.
  • Be careful not to overtighten when adjusting the headgear straps.



  • Remove the elbow from the mask by pressing the squeeze tabs and pulling the elbow away.
  • Pull the headgear over your head with both lower headgear straps released.
  • Adjust both of the upper headgear straps evenly until the mask is stable.
  • Bring the lower straps below your ears and loop the headgear into the lower hooks on the frame.
  • Adjust the lower headgear straps evenly until the mask is stable.
  • The fitting should be firm but not uncomfortable.
  • Do not overtighten.
  • Connect the air tubing from your device to the elbow.
  • Attach the elbow to the mask by pressing the squeeze tabs and pushing the elbow into the mask.
  • Turn on your device so it blows air.
  • Lift the mask away from the face a short distance, then put it back in position. Ensure that the lower part of the cushion sits in the crease of the chin.
  • Undo the fastening tabs on upper headgear straps. Reposition both straps evenly, only until a seal is achieved, then reattach the tabs.

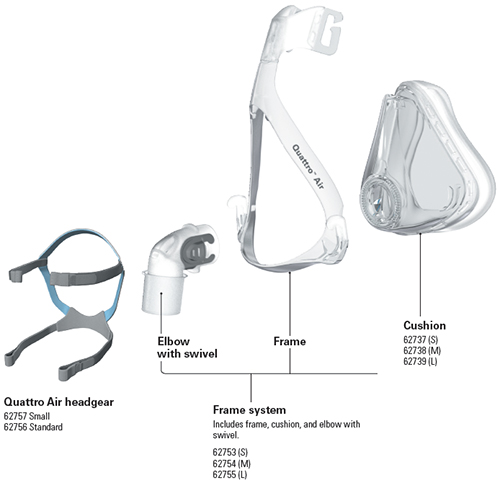

Complete mask system
Small 62701
Includes frame, Small cushion, elbow with swivel, and standard blue headgear
Medium 62702
Includes frame, Medium cushion, elbow with swivel, and standard blue headgear
Large 62703
Includes frame, Large cushion, elbow with swivel, and standard blue headgear
Headgear
Small 62757
Standard 62756
Frame system
Small 62753
Medium 62754
Large 62755
Cushion
Small 62737
Medium 62738
Large 62739

Disassembly

Assembly
